Foam Pigs

General Information

The company’s versatile Foam Pigs range can be used for pipeline scraping, cleaning, gauging, filling and drying ensuring the best performance. Made of lightweight open cell polyurethane foam, foam pigs can be coated and adapted for best tracking. These pigs are constructed of light, medium and heavy density polyurethane foam. They are  constructed from an open-cell polyurethane foam with cylinder shape that can be coated with polyurethane based coating for more durability and can be customized to accommodate an assortment of situations. The following reveals the most popular styles available, however, any conceivable configuration can be manufactured.

Features

  • Mainly 4 standard densities, Low Density (1.5-2lb/Cu.ft), Medium Density (5-7lb/Cu.ft), Heavy Density (8-10lb/Cu.ft) and Extra Heavy (20lb/Cu.ft).
  • The basic design consists of a flexible, bullet shaped polyurethane ‘Bare’ foam cylinder, Fully Coated, Criss-Cross, Silicone Carbide and both Wire & Nylon Brush designs.
  •  Transmitter cavities, tow loops, gauge plates and encapsulated magnets can be incorporated for pig tracking applications.
  • Dual diameter foams available upon request.
  • Sizes range from 1/2” to 90”.

Benefits

  •  Maintenance free, disposable product.
  •  Can traverse long distances.
  • Can be modified to fulfill the specific requirements of individual pipelines.
  • Up to 50% reduction in diameter through a pipeline.
  • Easily turn 90° bends and elbows, miters, cross tees and slip through valves.
  • Can be used on pipelines not originally designed for pigging activities.

Products

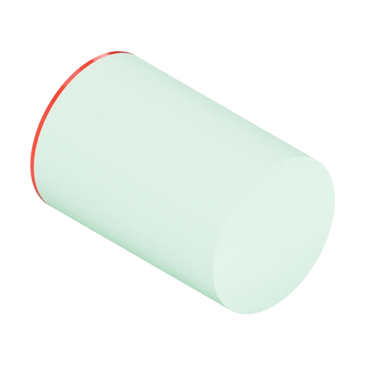

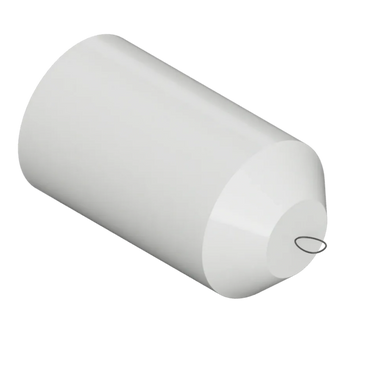

Bare Foam Pig

Fully Coated Foam Pig

Fully Coated Foam Pig

Bare Foam Pigs are primarily used for drying and sweeping of loose debris, sealing behind a stuck pig, batching operations and gauging of internal pipe conditions before extensive pigging.

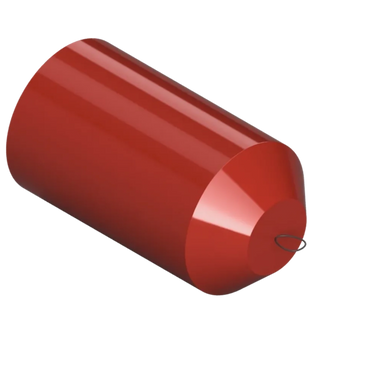

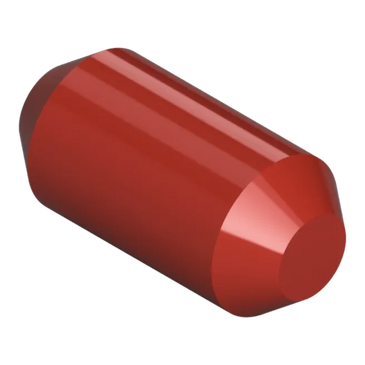

Fully Coated Foam Pig

Fully Coated Foam Pig

Fully Coated Foam Pig

Foam pigs can be coated and  adapted for many activities like  batching of de-watering...etc.

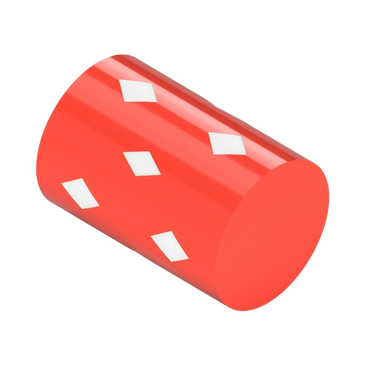

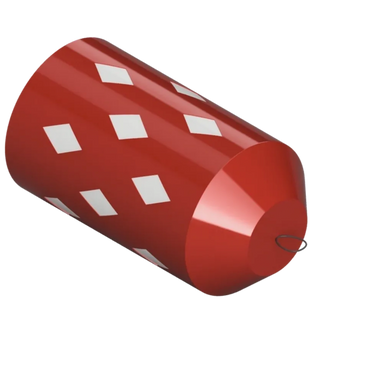

Criss-Cross Foam Pig

Fully Coated Foam Pig

Criss-Cross Foam Pig

he design is typically bullet  shaped and constructed of foam  with durable polyurethane  elastomer coated in a criss-cross  pattern.

Wire Brush Foam Pig

Fully Coated Foam Pig

Criss-Cross Foam Pig

Wire brush foam pigs are primarily used for regular maintenance applications and cleaning lines with buildup, rust or debris.

Video

Check out this great video About the Foam Pigs

Photo Gallery

    Data Sheet

    Foam Disc Pig (pdf)

    Download

    Foam Pig Data Sheet (pdf)

    Download
